MCM Wall Panels — Modified Clay Material Cladding

Modified clay material wall panels combining flexible construction with stone, concrete, wood, and other decorative finishes.

home Products MCM Panels
Specification
Type
  • Luminous Series
  • Textured Series
  • Smooth Series
  • Foamed Ceramic Series
Color
  • Black
  • Pink
  • Brown
  • Multi-color
  • Grey
  • Beige
  • Red
  • White
  • Orange
  • Yellow
  • Green
Size
  • 1200×2400
  • 1200*3000
  • 1200*2900
  • 600*1200
  • 600*2400
  • 600*3000
Order by

What Is an MCM Wall Panel?

An MCM wall panel is a thin, flexible soft-porcelain sheet finished with water-based, inorganic, firing-free inkjet printing. It reproduces natural stone, travertine, and textured concrete.

The clay base allows the panel to flex around curved or irregular walls. Its composition is explained in modified clay material.

MCM vs. Traditional Metal Composite (ACM) Panels

The two “MCM” categories differ at the core:

Core & Face

Metal MCM/ACM bonds aluminum, zinc, copper, or titanium skins to a polymer core. Angtai's mcm modified clay material is a single soft-porcelain sheet with a mineral-based surface finish — no metal skins.

Flexibility

Aluminum composite sheets are engineered to stay flat, which suits straight rainscreen runs but not curved facades. Modified clay panels are made to bend around columns and irregular walls without cracking.

Mounting

Aluminum systems typically use routed clips, tracks, or rivets. Modified clay panels are adhered directly to a prepared substrate.

Look

Aluminum MCM offers coil-coated colors and metallic finishes; modified clay MCM reproduces stone, travertine, slate, and textured concrete surfaces.

Weight, flexibility, and installation trade-offs across veneer and composite materials are broken down in MCM vs. other cladding materials. Fire performance for clay-based panels is confirmed against project-specific building codes rather than a single blanket rating; non-combustible cladding explains what that classification requires and how it's verified.

MCM Panel Series

Smooth Series

Even, minimalist surface for clean facade lines.

Textured Series

Raised, tactile finish that reads as natural stone from a distance.

Luminous Series

Light-reflective finish for lobbies and feature walls.

Foamed Ceramic Series

Lightweight core suited to large-format cladding runs.

Travertine, Slate, and Flowstone

Round out the collection with stone-specific veining and pattern detail for facades, lobbies, and reception walls.

Specifications

SpecValue
Standard sizes 1200×2400 mm, 1200×3000 mm, 600×1200 mm, 600×2400 mm, 600×3000 mm
Temperature tolerance -40°C to 150°C
Wear resistance Grade 4
Surface behavior Self-cleaning, rain-washable, low maintenance
Additional properties Antibacterial, freeze-resistant, flexes around curves without cracking

Limitations to Plan For

Before applying adhesive, substrates must be level, clean, dry, and free of dust, oil, or loose particles. Uneven or porous walls require a solid interface coat first; otherwise, adhesion and finished flatness may be affected.

Adhesive application and curing follow standard trade practice for the substrate type. Full steps are covered in the installation guide. Damaged panels are handled case by case through after-sales support rather than blanket field patching, so identify impact-prone edges and corners at the quote stage.

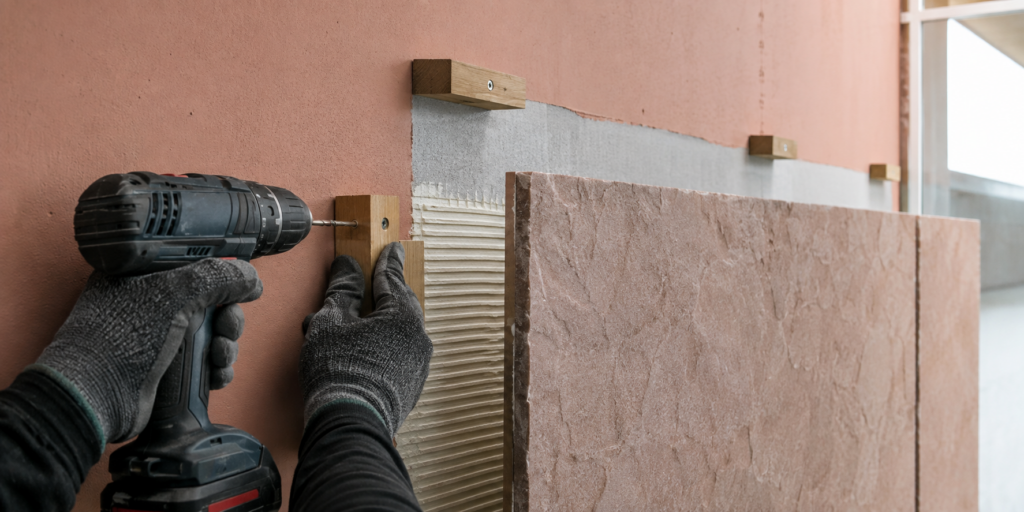

Hands using a drill to attach wood blocks to a pink wall with nails

Applications

Common applications for MCM wall panels including exterior facades, curved walls, interior feature walls, and high-rise recladding.

Exterior facades & rainscreen systems

rainscreen and ventilated facade installs typically run 1200×2400 mm or 1200×3000 mm panels over concrete or cement board substrates; rainscreen cladding systems covers the assembly detail behind the panel.

Curved and irregular walls

column wraps and radius walls rely on the panel's ability to flex over concrete, OSB, or metal substrates without cracking; the curved wall applications guide details substrate prep for radius work.

Interior feature walls

lobby, reception, and retail installs typically use 600×1200 mm or 600×2400 mm panels adhered directly to prepped cement board or existing tile; the interior applications guide details substrate prep for those settings.

High-rise recladding

facade-refresh projects reclad directly over existing aluminum-plastic panel or calcium-silicon board substrates without stripping the underlying structure; the exterior cladding guide details recladding substrate prep.

Curved wall with colorful textured panels in an industrial setting

Installation & Ordering

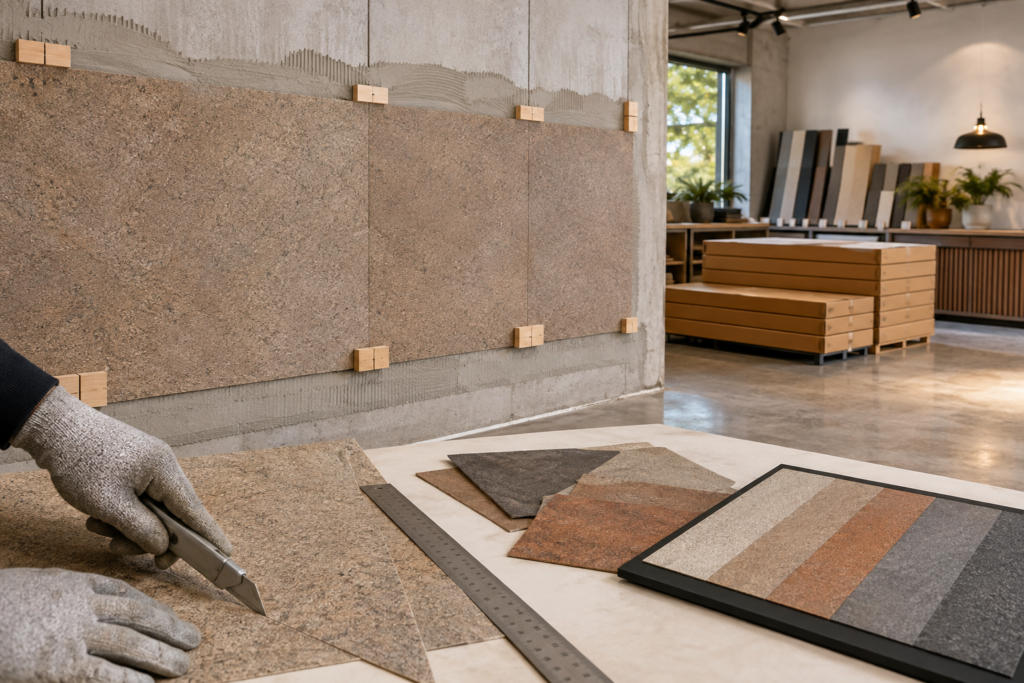

Modified clay MCM panels adhere directly to prepared concrete, cement board, OSB, aluminum-plastic panel, calcium-silicon board, or metal substrates — no routing, clips, or rivets. Edges are trimmed on-site with a blade and temporarily fixed with wood blocks or gas nails until adhesive sets.

Angtai turns quotes around within 24 hours, ships free samples once pricing is confirmed (buyer covers courier cost), and produces full orders in 25–30 days. Payment is accepted by T/T or L/C. What drives cost across sizes and series is broken down in MCM panel price.

smooth gray concrete wall with vertical seams and small indentations
quote

Get MCM Panel Pricing & Samples

Send your project size, substrate, and preferred series and Angtai will return a quote response typically within one business day after complete project details are received, with OEM/ODM options available for private-label distributors.

FAQ

What happens if the substrate isn't properly prepped?
Adhesion and finished flatness both depend on a level, clean, dry surface. Uneven or porous walls need a wall solid interface layer applied first — skipping this step risks poor bond strength and visible unevenness once panels are up.
Can MCM panels be installed in cold weather?
The finished panel tolerates operating temperatures from -40°C to 150°C once installed. Adhesive application on-site should still follow the substrate and curing guidance in the installation guide for prevailing site conditions.
What's the minimum bend radius for curved installations?
Modified clay material panels flex to fit curved and irregular walls without cracking. The exact minimum radius depends on panel size, thickness, and substrate rigidity, and is confirmed during quote review for your specific project.
